Modular Laser Micromachining: A Scalable Platform for Precision Manufacturing

Laser micromachining has become a key enabling technology in high-precision manufacturing. Its ability to process a wide range of materials like metals, glass, polymers, and composites with minimal thermal impact makes it indispensable across sectors such as electronics, medical devices, photonics, and automotive. However, as production environments evolve toward greater variability and customization conventional, single-purpose laser systems have their limitations.

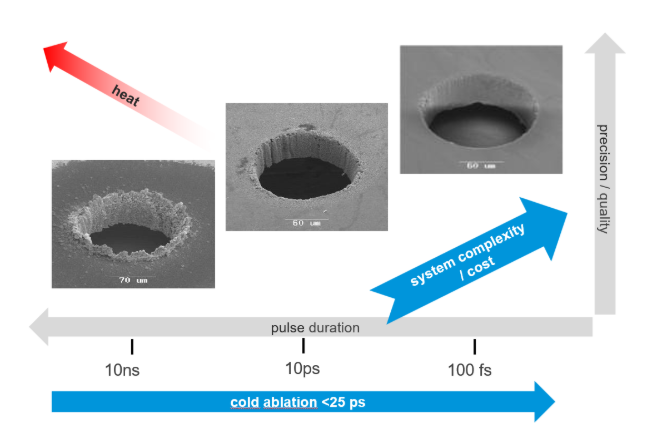

The Role of Pulse Duration in Precision

The quality of a laser micromachining application is closely tied to the duration of its laser pulses. Shorter pulses, such as those in the picosecond or femtosecond range, enable finer feature resolution, reduced heat-affected zones, and improved edge quality. These characteristics are essential for applications requiring high dimensional accuracy and minimal material distortion.

Challenges with ultra-short pulse lasers

However, systems optimized for ultra-short pulses come with their own set of challenges:

#1 Price and specialization

Ultra-short pulse lasers are typically expensive and highly specialized. They are often configured for a single application and lack the flexibility to adapt to new tasks or materials.

#2 Integration and operator training

Furthermore, the introduction of new equipment into a production line frequently necessitates extensive operator training. Given the current shortage of skilled technicians in many regions, this requirement can pose a significant operational challenge and create additional costs.

A Modular and Reconfigurable Alternative

To address these constraints, AMS Technologies and OpTek Systems have developed a modular laser micromachining platform that combines the ease of a turnkey solution with the adaptability of a fully customizable system.

This approach is based on a standardized architecture comprising interchangeable modules, including laser sources, beam delivery systems, and motion control units. Each module is designed to integrate seamlessly with the others, sharing a common mechanical footprint and software interface. This modularity allows users to configure systems tailored to specific application requirements while maintaining consistency in operation, control, and maintenance.

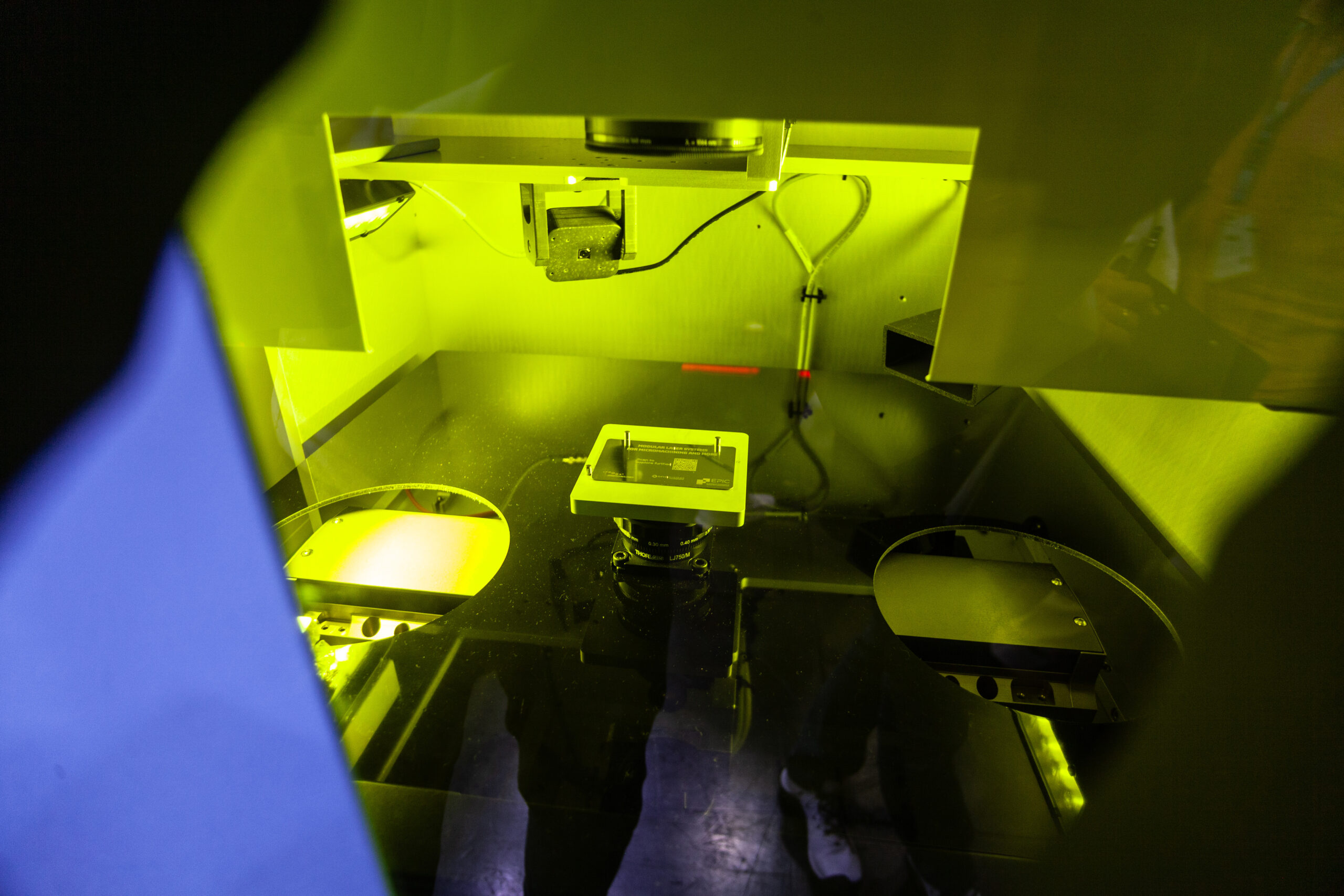

Proof-of-Concept Demonstration

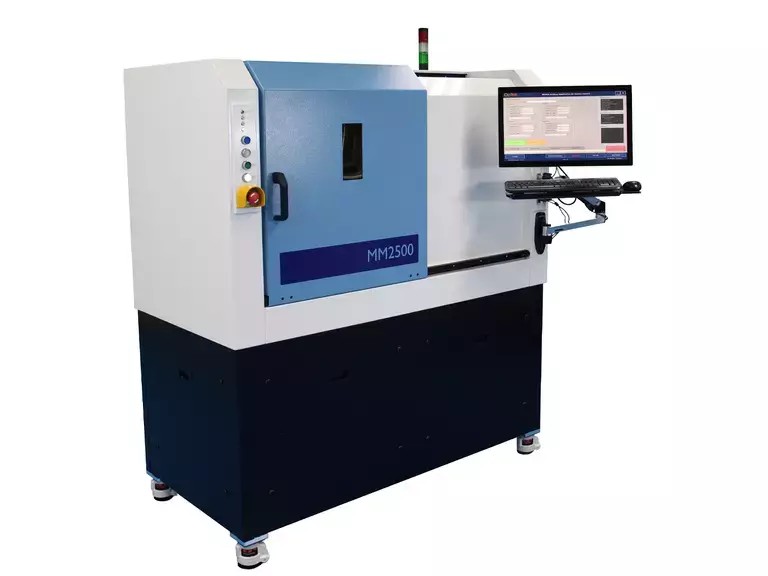

The first proof-of-concept system was presented at Laser World of Photonics 2025. This prototype is based on the OpTek MM2500 laser machine, equipped with a neoLASE MOPA laser capable of operating at multiple pulse durations. Future iterations of the platform will support reconfiguration of additional laser parameters, such as wavelength, output power, and beam shape.

This development is a significant step toward a truly reconfigurable micromachining system. It enables manufacturers to respond more effectively to changing production demands, test new processes, and scale capabilities without the need for entirely new equipment.

Platform Benefits

The modular platform offers several key advantages.

#1 Flexibility and usability combined

First, it provides a high degree of flexibility without compromising usability. The system is delivered as a turnkey solution, yet it can be reconfigured or upgraded as requirements evolve. This reduces the need for multiple dedicated machines and lowers capital expenditure over time.

#2 Simple integration and operator training

Second, the unified software and hardware architecture simplifies operator training and system integration. Because all modules operate within the same control environment, the learning curve is significantly reduced, which is particularly beneficial in settings where skilled labor is limited.

#3 Scalability

Third, the platform is inherently scalable. Users can begin with a basic configuration, such as a nanosecond laser, and later upgrade to picosecond or higher-power modules without replacing the entire system. This scalability supports long-term investment planning and operational agility.

#4 Easy maintenance and service

Finally, maintenance and service are streamlined through the use of standardized components. This reduces downtime, simplifies spare parts management, and enhances overall system reliability.

#5 Application Versatility

The platform is suitable for a wide range of micromachining applications. These include micro-drilling of metals and ceramics, precision cutting of polymers and composites, surface texturing for medical implants, and engraving of transparent materials such as glass. It is also well-suited for structuring thin films and coatings. Its adaptability makes it particularly valuable in high-mix, low-volume (HMLV) production environments, where the ability to quickly switch between different materials and geometries is essential.

Conclusion

As manufacturing continues to demand greater precision, flexibility, and efficiency, the limitations of traditional laser systems are becoming more pronounced. The modular, reconfigurable platform developed by AMS Technologies and OpTek Systems offers a forward-looking alternative. By combining the strengths of turnkey systems with the adaptability of modular design, it provides a scalable, future-proof solution for modern micromachining challenges. This approach enables manufacturers to remain competitive in dynamic markets, reduce operational complexity, and extend the lifecycle of their capital investments, while maintaining the high standards of precision that advanced applications require.

How can we help you? Let’s discuss your requirements and find the best laser solution for your needs.

Read more about custom laser systems

FAQ: Modular Laser Micromachining

What is a modular laser micromachining platform?

A modular laser micromachining platform combines interchangeable components such as laser sources, beam delivery systems, and motion control units within a standardized architecture. This allows the system to be configured and adapted for different manufacturing requirements.

How does a modular laser micromachining platform differ from a conventional system?

Conventional systems are typically configured for a defined laser source and process range. A modular platform uses standardized interfaces and interchangeable modules, allowing users to adapt or upgrade the system when materials, processes, or performance requirements change.

How does pulse duration affect laser micromachining?

Shorter pulse durations can produce finer features, smaller heat-affected zones, and improved edge quality. The appropriate pulse duration depends on the material, process, precision requirements, system complexity, and budget.

Can a modular system be upgraded as requirements change?

Yes. Users can begin with a basic configuration and later replace or add modules for different pulse durations, power levels, wavelengths, or beam characteristics without replacing the complete machine.

Why is modular laser micromachining suitable for high-mix low-volume production?

High-mix low-volume production requires manufacturers to process changing materials, geometries, and batch sizes. A reconfigurable platform provides this flexibility while maintaining a consistent operating and control environment.

Does a modular system compromise usability?

No. The platform combines flexible hardware with a consistent mechanical and software architecture. Users can adapt the system to different applications while retaining the straightforward operation and reliability expected from a turnkey solution.

Which applications can a modular laser micromachining system support?

Potential applications include micro-drilling metals and ceramics, cutting polymers and composites, texturing medical implants, engraving glass, and structuring thin films and coatings. The final configuration depends on the material and process requirements.
